Product Introduction
• Bore : ø25~ø40 mm • Pmax : 140 Kg/cm²
• This type of hydraulic cylinder, the clamping mechanism is the lever principle, the piston is pushed out in a clamping state, the clamping force is greater than that of the corner cylinder, and the main mechanism parts are installed outside the cylinder body, which is easy to maintain.
• The cylinder barrel and clamping mechanism are manufactured from structural carbon steel for maximum durability and long service life.
• Clamping arm : material S45C hardness HRC26˚~30˚.

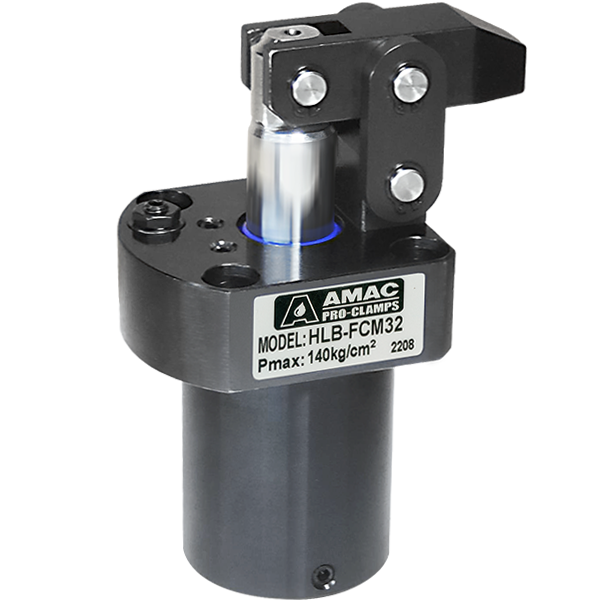

Hydraulic Lever-type Cylinder Product type
Product Introduction

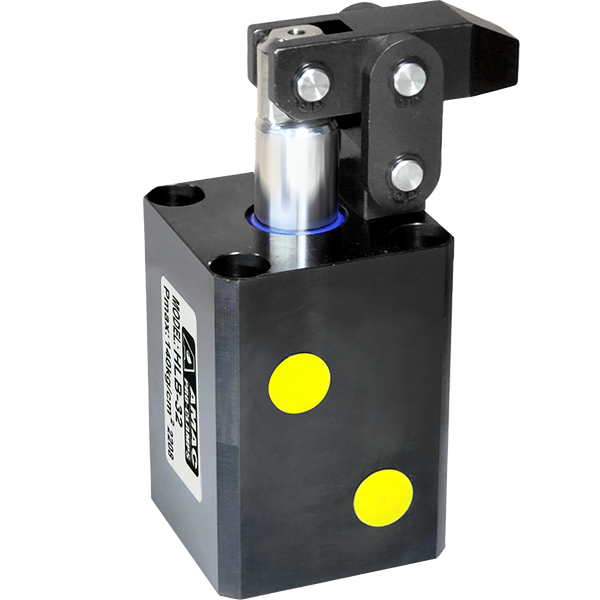

Line type

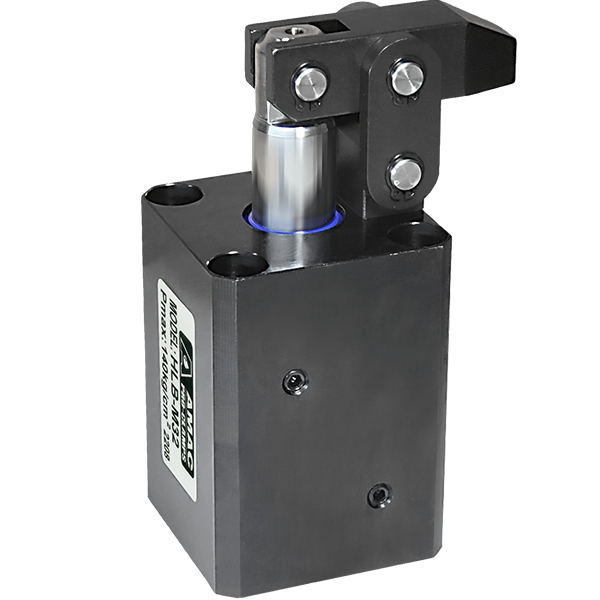

M: Manifold type

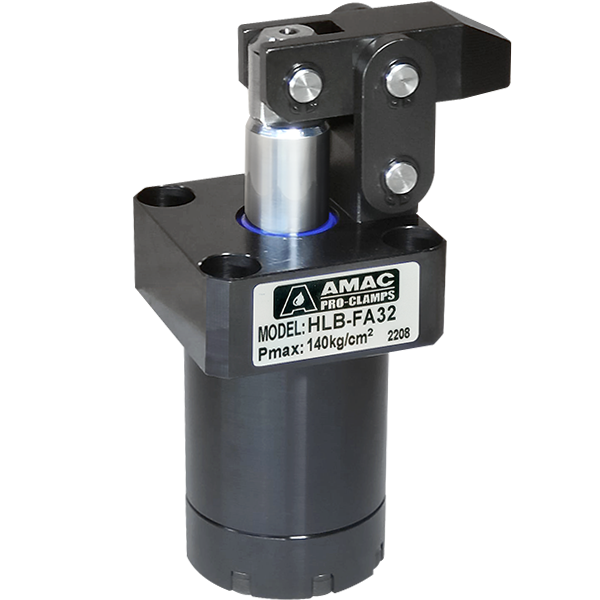

FA: Flange type

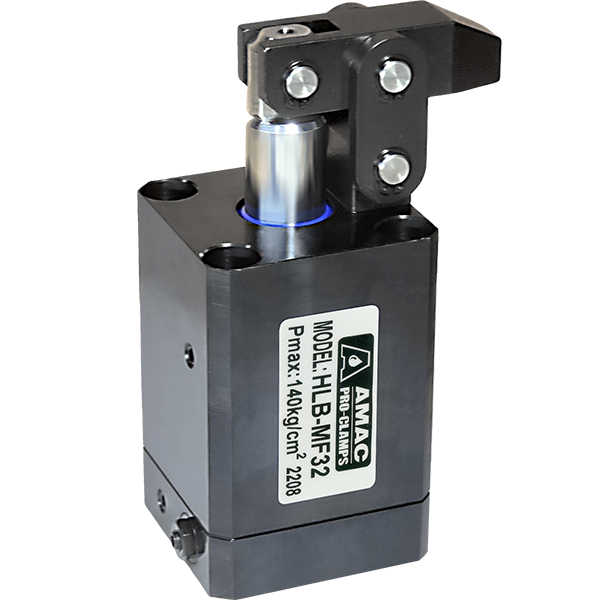

MF: Manifold with flow control

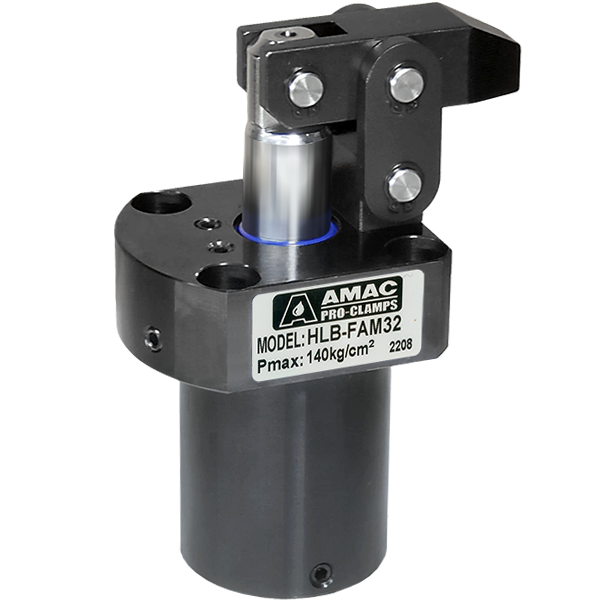

FAM: Flange with manifold

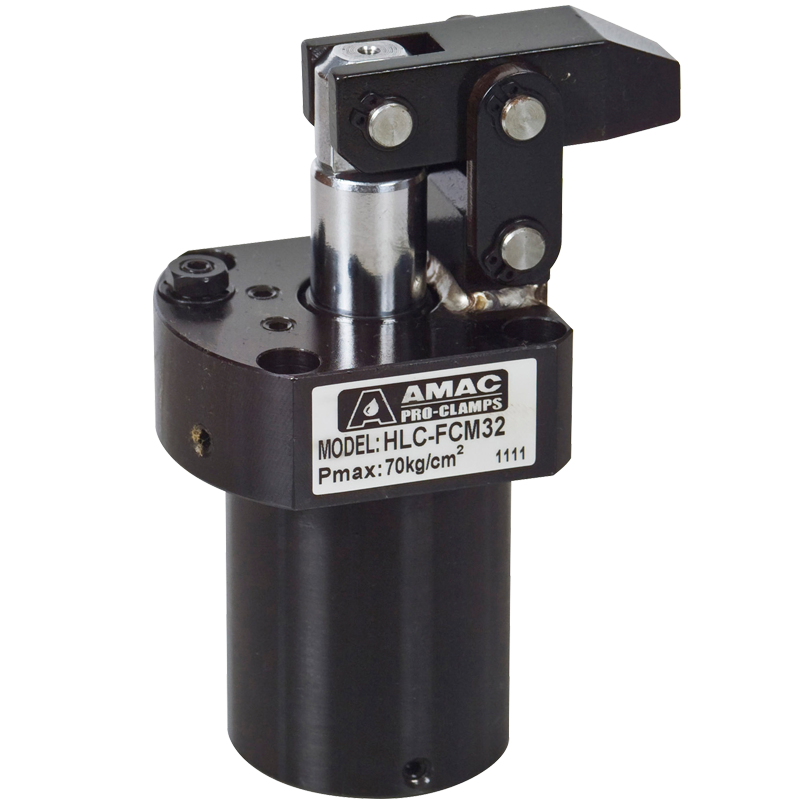

FCM: Flange manifold with flow control
Specification
| Bore of cylindermm | ø25 | ø32 | ø40 | ||
| Piston rod diametermm | ø18 | ø20 | ø25 | ||
| Total strokemm | 25 | 25 | 30 | ||
| Pressure area(pull/push)cm² | 2.37 / 4.91 | 4.9 / 8.04 | 7.66 / 12.57 | ||
| Theoretical clamping100 Kg/cm² | 388 | 603 | 955 | ||
| Fluid | Filtered hydraulic oil | ||||
| Max. operation pressure | 140 Kg/cm² | ||||
| Operation pressure range | 5-105 Kg/cm² | ||||
| Acting type | Double acting | ||||

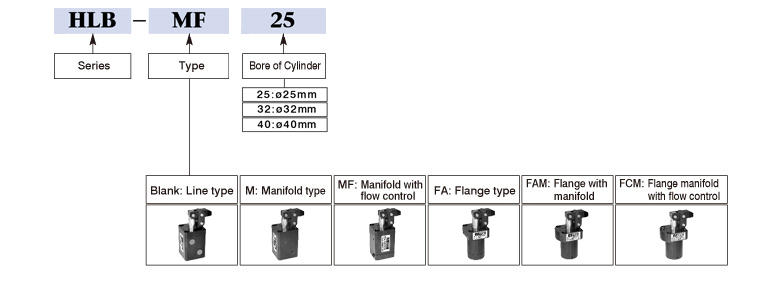

Order Code
